Solar L foot Kit with height of 165mm

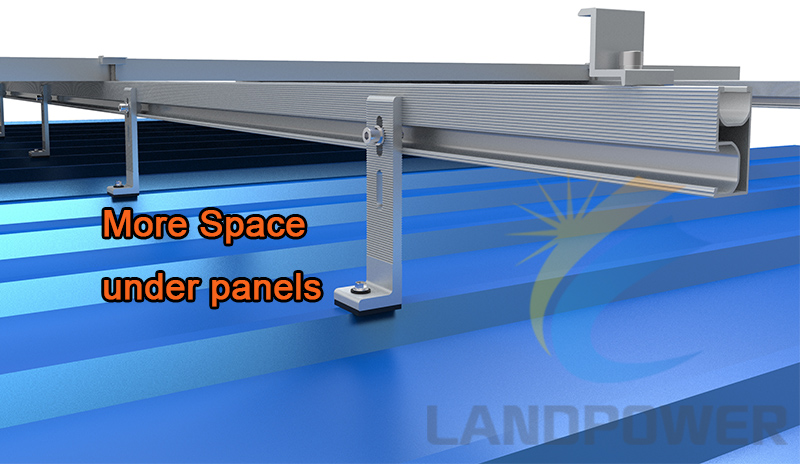

The L Feet (L Bracket) stands out in the solar mounting industry with its 165mm height, a key design advantage that increases the clearance between solar panels and the roof. This elevated spacing enhances airflow beneath the panels, improving ventilation to boost solar efficiency by reducing heat buildup. Better ventilation also minimizes fire risks associated with overheating, ensuring a safer and more durable installation.

TECHNICAL INFORMATION
Application: Metal Roof Mount

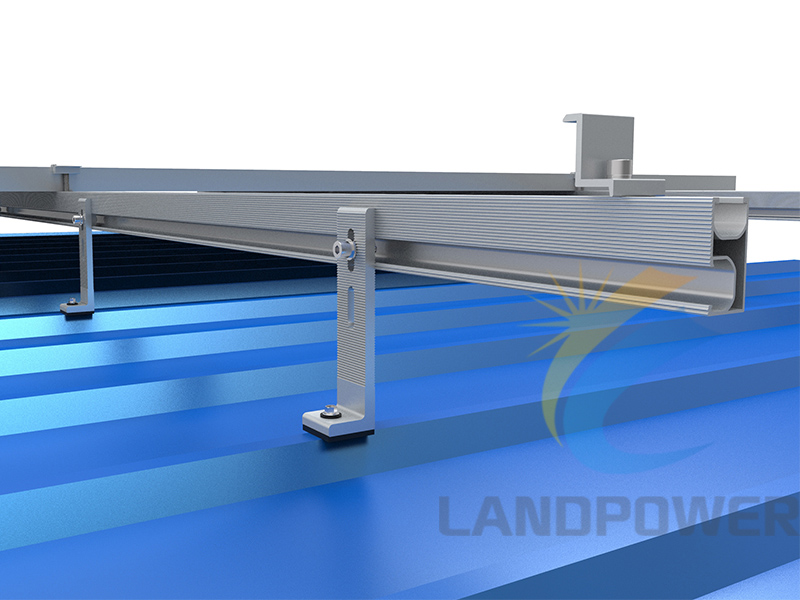

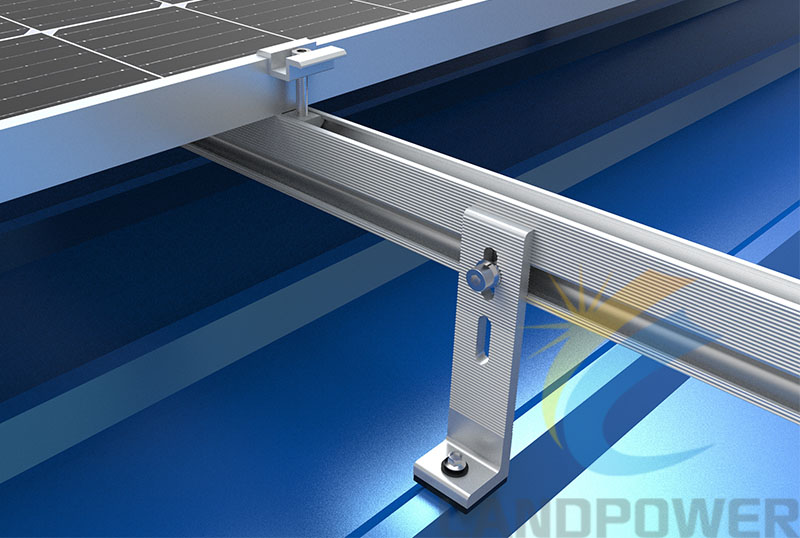

Function: Connecting rail and roof

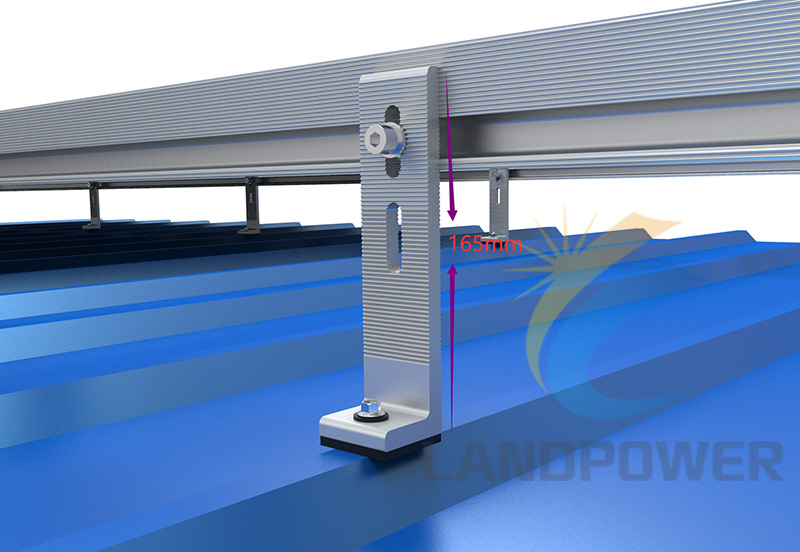

Height：165mm
Building Height：20 m
Max Wind Speed：<60m/s
Snow Load：<1.4KN/m2
Standard ：En 1090, AS/NZS 1170 and other international Standard
Material ：Aluminum 6005-T5& Stainless steel 304, EPDM

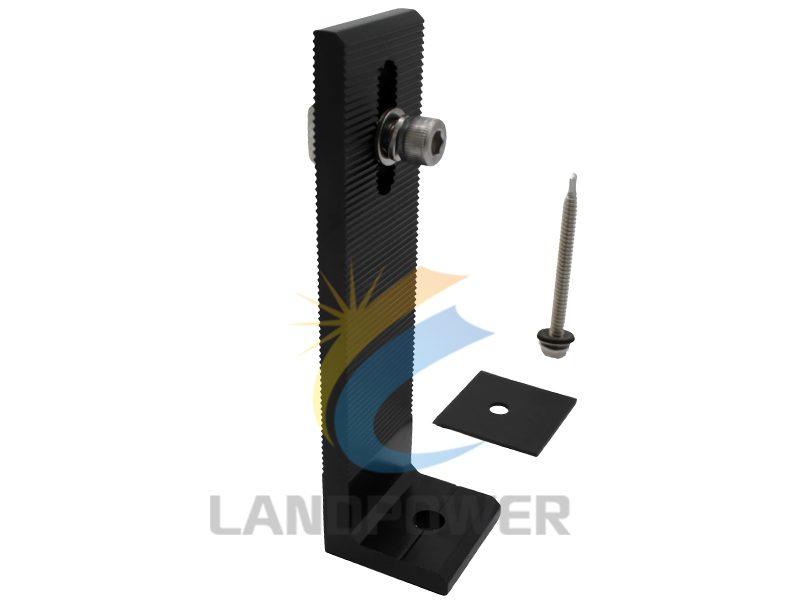

Color: Silver, Black or Customized
Anti-corrosive: Anodized aluminum & stainless steel
Warranty：12 years warranty and twenty- year service life

Premium Materials & Protection:

Constructed from high-strength aluminum alloy 6005-T5, offering excellent corrosion resistance and structural stability.

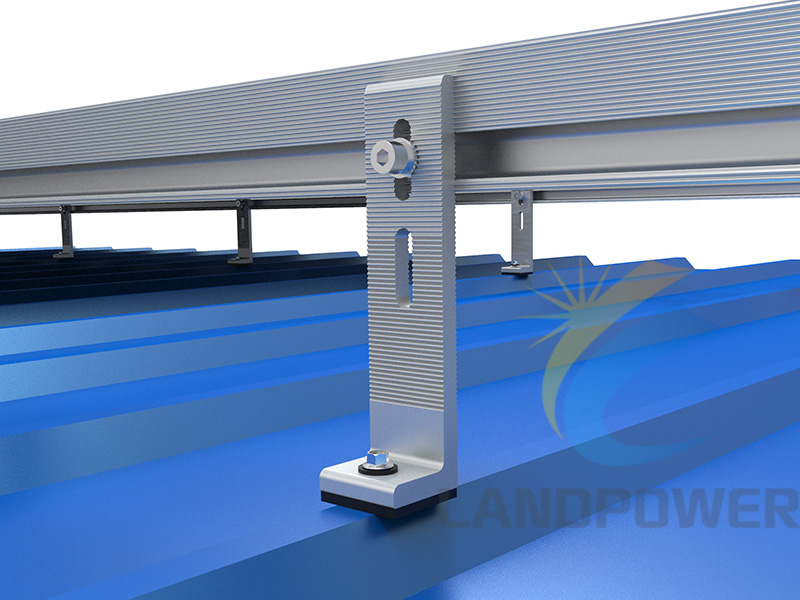

Features an integrated EPDM gasket at the base to prevent water ingress, protecting the roof from leaks.

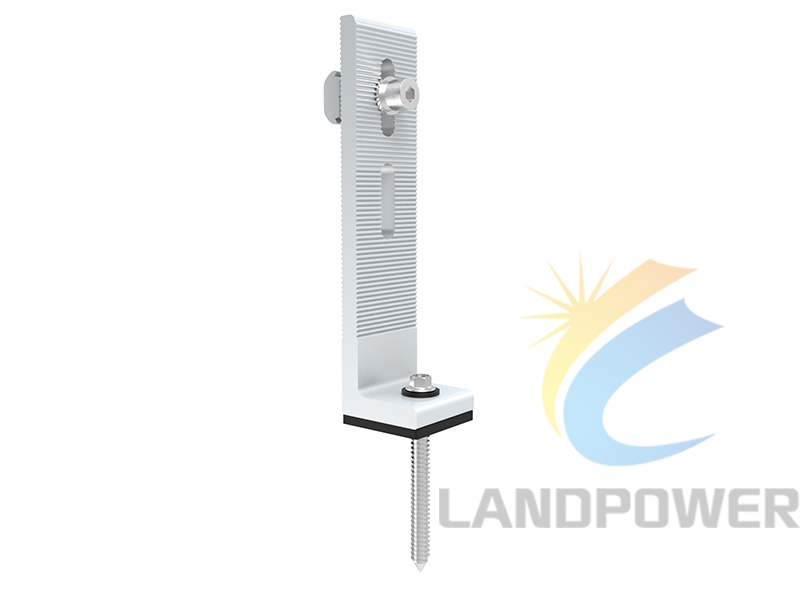

Includes self-tapping screws compatible with both metal (steel) and wood substrates, simplifying installation.

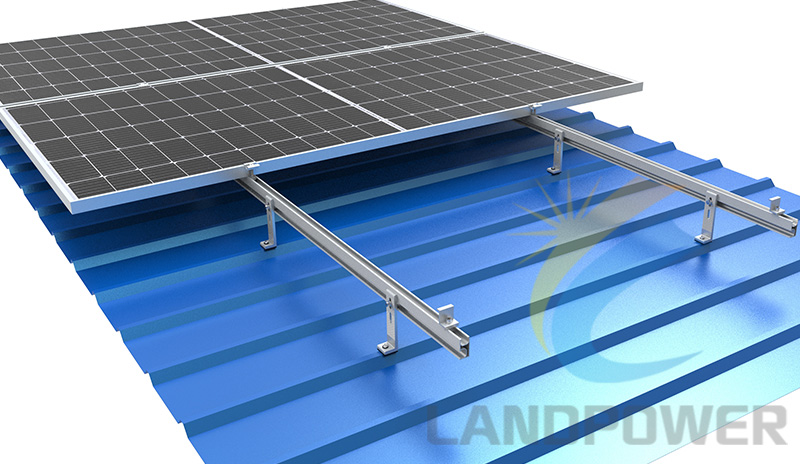

Ideal for rooftop solar arrays, our L Feet provide a reliable, efficient, and safety-focused solution for optimal system performance.

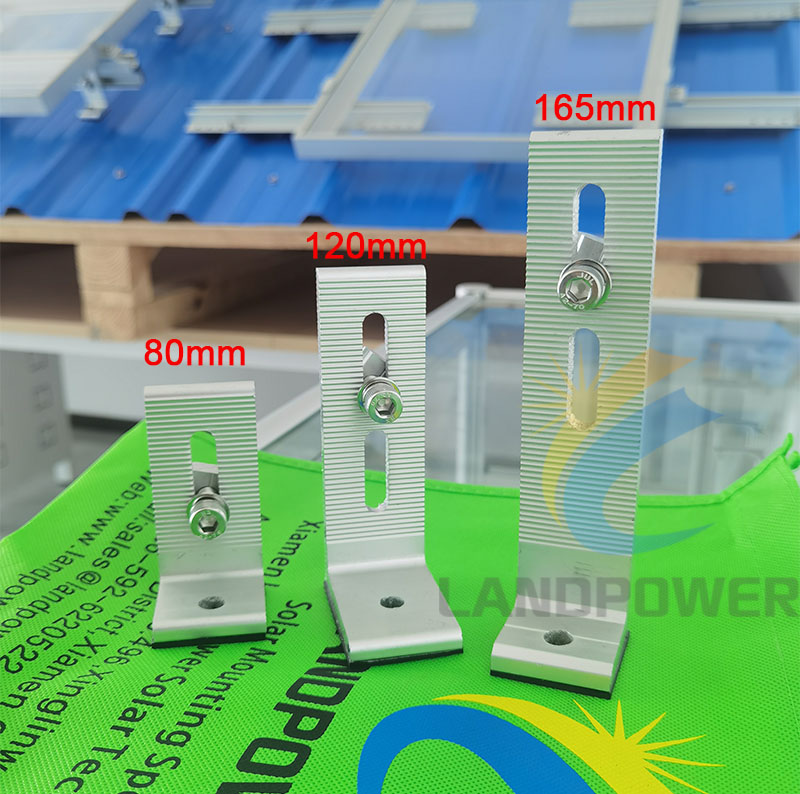

There are also different height options:

Key Selling Points Emphasized:

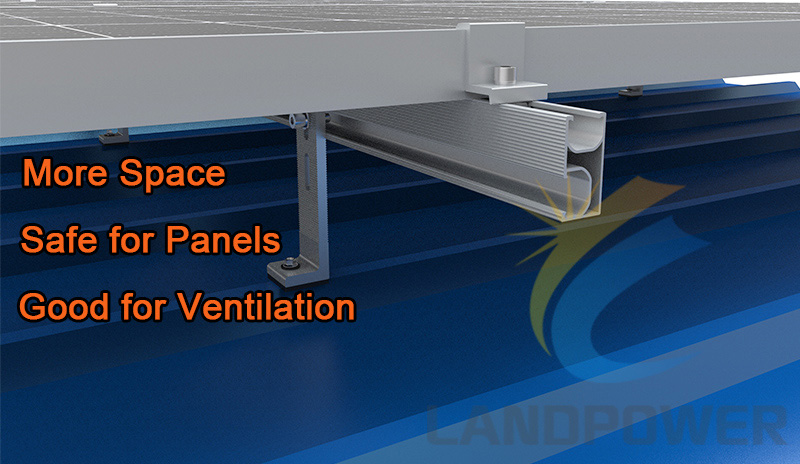

1. 165mm height → Superior ventilation → Higher efficiency + Fire risk reduction.
2. 6005-T5 aluminum + EPDM gasket → Durability + Waterproofing.
3. Versatile fasteners → Ease of installation on metal/wood roofs.
